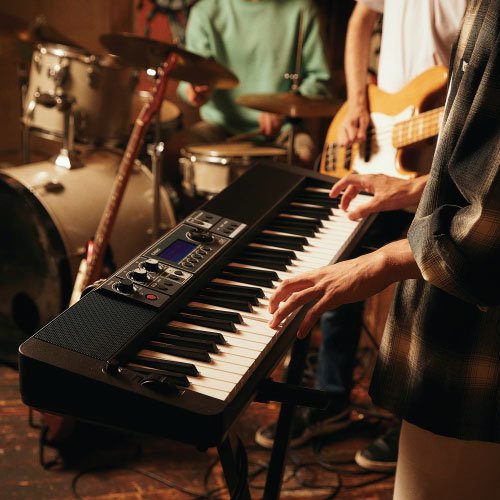

| CASIO CT-S500 (SLIM & SMART) |
| Number of Keys |
61 |
| Touch Response |
3 sensitivity levels, off |
| Sound Source |
AiX |
| Maximum Polyphony |
64 |
| Number of Tones |
800 |
| Number of Rhythms/Patterns |
243 User Rhythms: 50 |
| Automatic Accompaniment |
Yes |
| Built-in Songs |
User Songs: 10 |
| Demonstration Songs |
1 |
| Songs |
Part Off: Left Hand, Right Hand, Both Hands |
| Recorder |
[MIDI Recorder] 6 tracks, 5 songs Approximately 40,000 notes for each song |
| Speaker |
[13cm x 6cm] x 2 |
| Amplifiers |
2.5W + 2.5W |
| Power Supply |
AC Adaptor: AD-A12150LW (DC 12V) Batteries: AA-size alkaline batteries x 6 or AA-size rechargeable nickel metal hydride batteries* x 6 Battery Life: Approximately 3 hours continuous operation Actual continuous operation time may be shorter due to battery type, performance type, and usage environment. *Measured values while using eneloop batteries. eneloop is a trademark of Panasonic group. |
| Power Consumption |
7.5W |
| Dimensions |
930 x 258 x 91 mm (w/o music stand) |
| Weight |
4.7kg (w/o batteries) |
| Color |
Black |
| Included Accessories |
Music Stand, AC Adaptor AD-A12150LW, Wireless MIDI & Audio Adaptor WU-BT10, Strap Lock |
| Effects |
Reverb: 24 (+Preset for each tone) Chorus: 12 (+ Preset for each tone) Delay: 15 (+ Preset for each tone) DSP Effect: 100 (+ Preset for each tone) Master EQ: 10 (+ User: 1) Surround |
| Layer/Split |
Layer: 3 (Upper1/2, Lower1), Split: Yes |
| Octave Shift |
-3 to +3 octaves |
| Transpose |
-12 to +12 semitones |
| Tuning Control |
A4 = 415.5 Hz to 440.0 Hz to 465.9 Hz |
| Scales |
Equal temperament + 16 variations |
| Arpeggiator |
150 |
| Registration |
64 setups (4 sets x 16 banks) |
| One Touch Presets |
243 |
| Auto Harmonize |
12 |
| Metronome |
Beat Bell: Off, 1 to 9 (beats) Tempo Range: 20 to 255 Tap Tempo: Yes |
| LCD |
Yes, Type: Full-dot, Back Light: Yes (white) |
| Pitch Bend Wheel |
Yes |
| Knobs |
3 |
| Dial |
Yes |
| Volume Sync EQ |
Yes |
| Others |
・Sampling Function Input Method: Audio In / Media (WAV) Sampling Type / Time: Sampling Melody × 1 / Approx. 10 sec., Sampling Drum Set ×1 / Approx. 3 sec. Format: 44.1kHz, 16 bit, Stereo Loop Functionality |
| LINE OUT |
2 (L/MONO, R): Standard jack |
| USB port |
Type A, micro B |
| AUDIO IN |
Stereo mini jack |
| PEDAL |
PEDAL 1: Standard jack PEDAL 2 / EXPRESSION: Standard jack |
| PHONES/OUTPUT |
PHONES: Stereo mini jack |
| Connection to App |
Supported App: CASIO MUSIC SPACE |
| Wireless Functionality |
Bluetooth version 5.0 AUDIO Profile: A2DP, Supported Codec: SBC MIDI Profile: GATT (MIDI over Bluetooth Low Energy) (using supplied Wireless MIDI & Audio Adaptor WU-BT10) |
| MIDI |
Yes (Using the USB port): GM level 1 compatible |
