GIGABYTE GP-UD1600PM PG5 POWER SUPPLY

Product Description
Model: GP-UD1600PM PG5
Type: Intel Form Factor ATX 12V v3.1
PFC: Active PFC (>0.9 typical)
Input Voltage: 100-240 Vac (full range)
Input Current: 15-7.5A
Input Frequency: 60-50 Hz
Output Capacity: 1600W
Dimension: 150 x 190 x 86mm
Fan Type: 140mm Double Ball Bearing fan
80 PLUS: Platinum
Efficiency: 92% at typical load
MTBF: >100,000 hours
Protection: OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal: 100-150ms
Hold Up Time: >16ms
Cable Type: Flat, All black

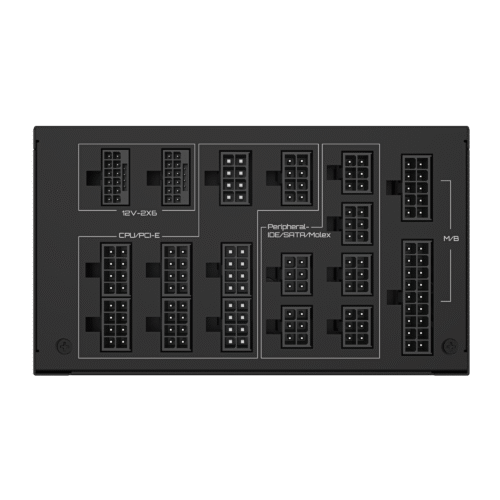

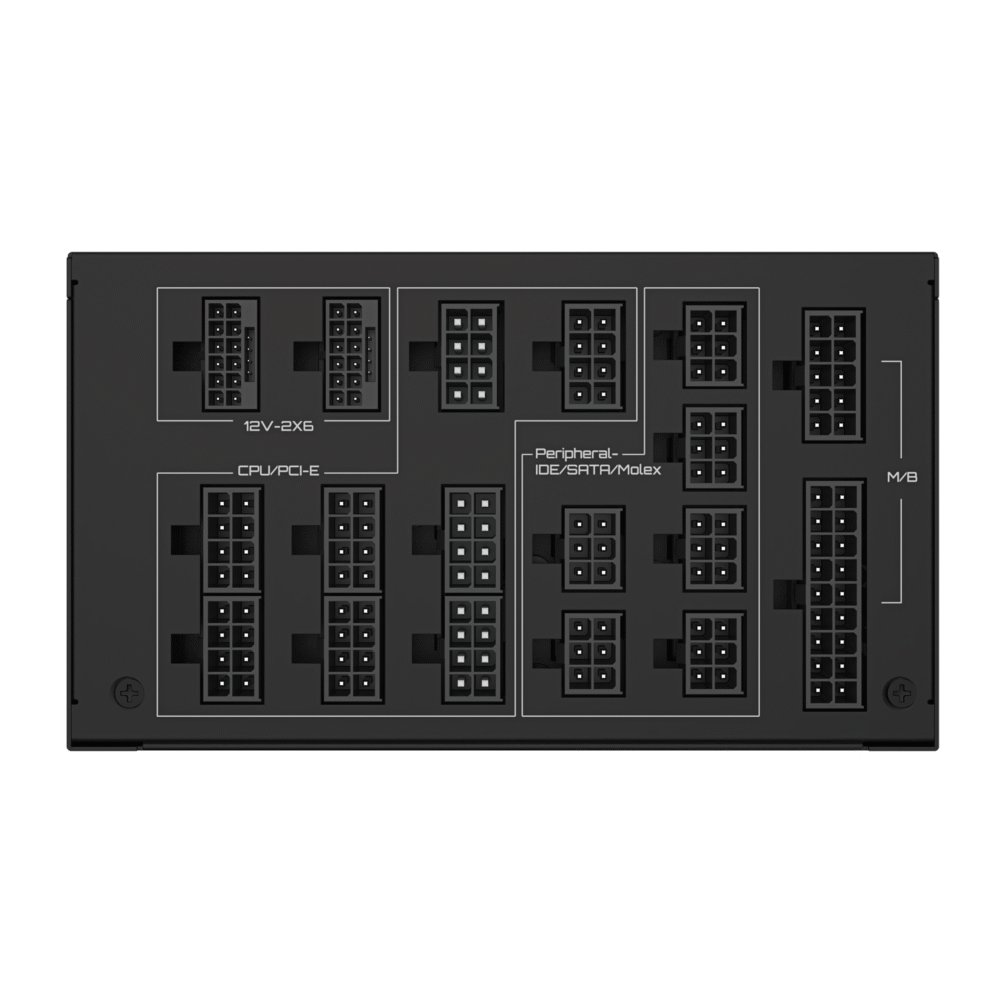

Connectors:
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCI-E 16 Pin x 2 : 700mm*2
PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2
PCI-E 6+2 Pin x 8 : 650mm+150mm*4
SATA x 16 : 650mm+150mm+150mm+150mm*4
4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2

Warranty: 5 years warranty
