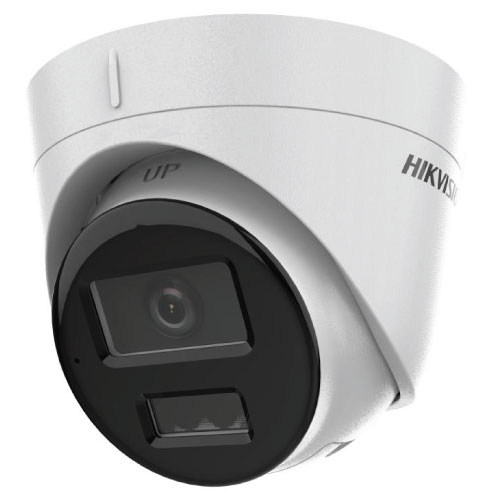

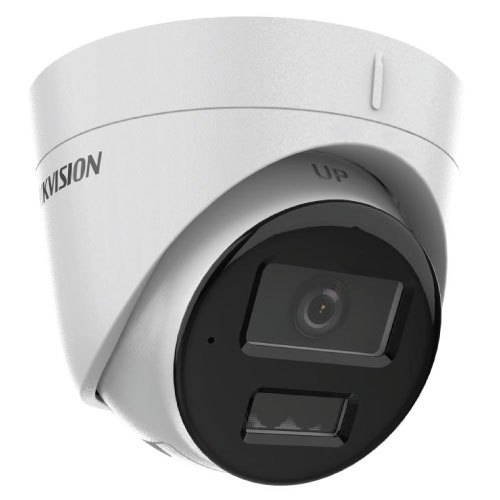

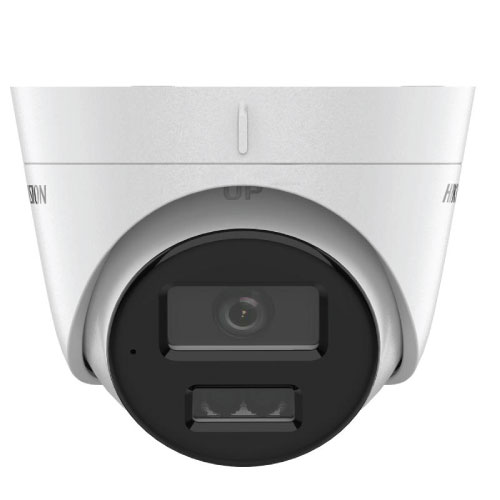

Hikvision DS-2CD1343G2-LIU 4 MP Smart Hybrid Light IP Dome Camera

Product Description
Camera

Image Sensor1/3″ Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens

Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°

4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°

Lens MountM12
Iris TypeFixed
ApertureF1.6
DORI

DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm
Video

Main Stream
50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream
Audio

Audio TypeMono sound
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network

SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user

ClientiVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks
Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in MicrophoneYes
Reset Key-F: Yes
Event

Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
General

Power
12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 6.5 W

MaterialMetal & Plastic
DimensionØ110 mm × 89.2 mm (Ø4.3″ × 3.5″)
Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
WeightApprox. 340 g (0.7 lb.)
With Package WeightApprox. 560 g (1.2 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
Approval

EMC
FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7

Safety
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

ProtectionIP67: IEC 60529-2013
