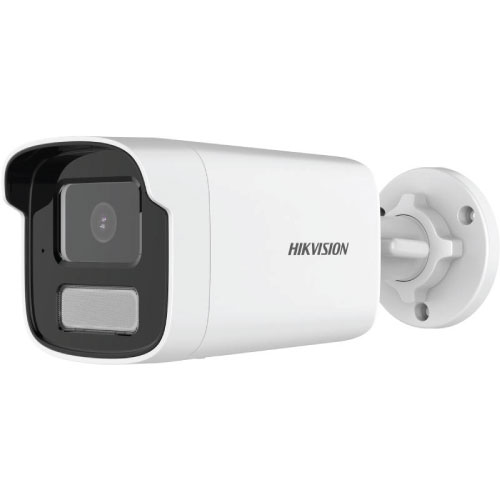

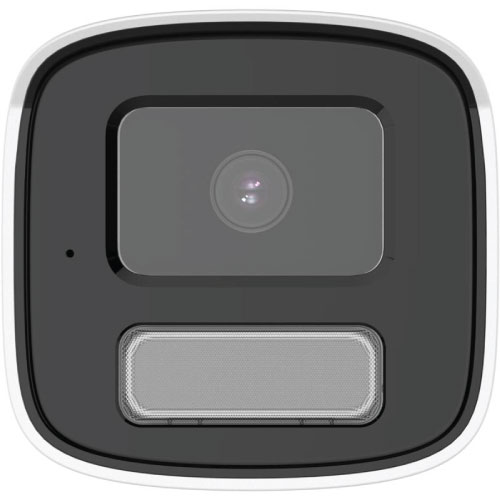

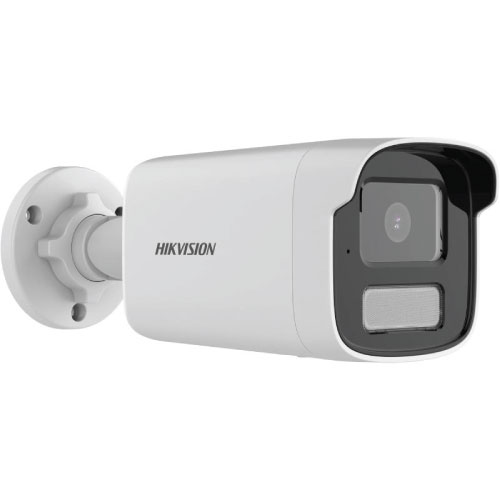

Hikvision DS-2CD1T23G2-LIU 2 MP Audio Smart Hybrid Light Fixed Bullet Network Camera

Product Description
Camera

Image Sensor1/2.9″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Lens

Lens TypeFixed focal lens, 4 and 6 mm optional
Focal Length & FOV:
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

6 mm, horizontal FOV 51°, vertical FOV 27°, diagonal FOV 60°

Lens MountM12
Iris TypeFixed
ApertureF1.6
DORI

DORI:
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

6 mm, D: 91 m, O: 36 m, R: 18 m, I: 9 m

Illuminator

Supplement Light TypeIR,White Light
Supplement Light RangeUp to 50 m
Smart Supplement LightYes
IR Wavelength850 nm
Video

Main Stream:
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream
Audio

Audio TypeMono sound
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network

SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host:
Up to 32 users

3 user levels: administrator, operator, and user

ClientiVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)Digital WDR
SNR≥ 52 dB
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks
Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in MicrophoneYes
Reset Key-F: Yes
Event

Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
General

Power:
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7 W

MaterialMetal & Plastic
Dimension83.7 mm × 80.7 mm × 205.6 mm (3.3″ × 3.2″ × 8.1″)
Package Dimension260 mm × 125 mm × 125 mm (10.2″ × 4.9″ × 4.9″)
WeightApprox. 580 g (1.3 lb.)
With Package WeightApprox. 635 g (1.4 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
Approval

EMC:
FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7

Safety:
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment:
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

ProtectionIP67: IEC 60529-2013
