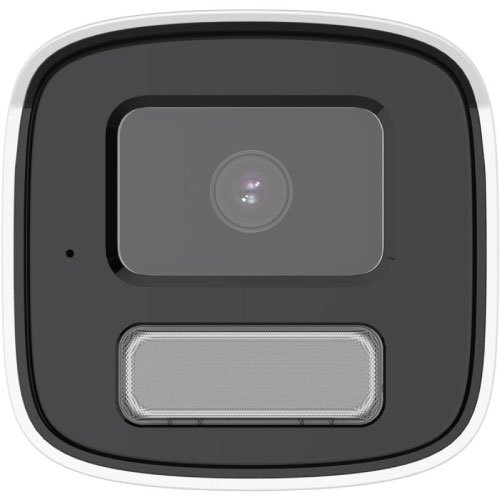

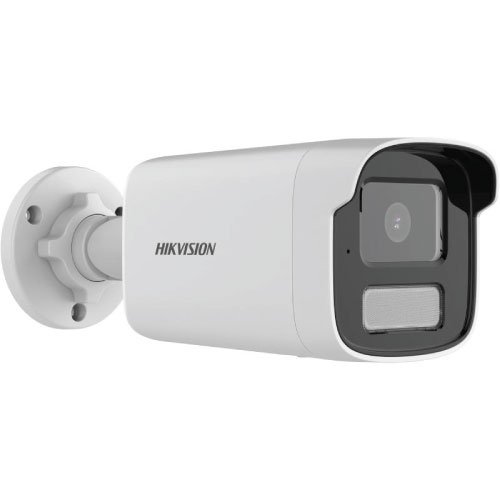

Hikvision DS-2CD1T63G2-LIU 6 MP Smart Dual Light Fixed Bullet Camera

Product Description
Camera
Image Sensor1/2.4″ Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Lens

Lens TypeFixed focal lens, 4 and 6 mm optional
Focal Length & FOV
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°

Iris TypeFixed
Lens MountM12
ApertureF1.6
DORI

DORI
4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

6 mm, D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

Supplement Light RangeUp to 50 m
Smart Supplement LightYes
Supplement Light TypeIR,White Light
IR Wavelength850 nm
Video

Main Stream
50 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

H.265 TypeMain Profile
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Audio

Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio TypeMono sound
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Network

Web Browser
Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

ClientiVMS-4200,Hik-Connect
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK,Hik-Connect
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user


Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks
Interface

On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in MicrophoneYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Reset Key-F: Yes
Event

Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
General

Power
12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7.5 W

MaterialMetal & Plastic
Dimension83.7 mm × 80.7 mm × 205.6 mm (3.3″ × 3.2″ × 8.1″)
Package Dimension260 mm × 125 mm × 125 mm (10.2″ × 4.9″ × 4.9″)
With Package WeightApprox. 635 g (1.4 lb.)
WeightApprox. 580 g (1.3 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
Approval

ProtectionIP67: IEC 60529-2013
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7

Safety
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
