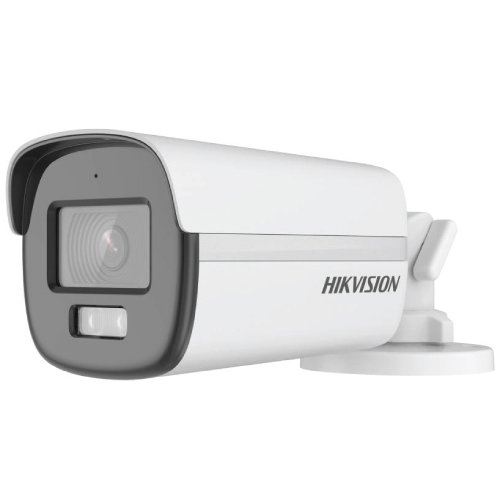

Hikvision DS-2CE12DF0T-FS 2MP ColorVu Audio Fixed Bullet Camera

Product Description
Camera

Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Signal SystemPAL/NTSC
Lens

Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV:
2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125°

3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99°

Lens MountM12
Illuminator

Supplement Light TypeWhite Light
Supplement Light RangeUp to 40 m
Smart Supplement LightYes

Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness, Sharpness, Anti-banding, AGC
Frame Rate:
TVI: 1080p @25 fps/30 fps

CVI: 1080p @25 fps/30 fps

AHD: 1080p @25 fps/30 fps

CVBS: PAL/NTSC

Day/Night ModeColor
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR, BLC, HLC, Global
Noise Reduction3D DNR/2D DNR
White BalanceAuto, Manual
Interface

Video OutputSwitchable TVI/AHD/CVI/CVBS
AlarmSolid Light Alarm (White Light)
General

MaterialMetal
Power12 VDC ± 25%, max. 3.2 W,*You are recommended to use one power adapter to supply the power for one camera.
DimensionØ70 mm × 116.1 mm (2.75″ × 4.57″)
Approx. 511 g (1.13 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish
Approval

ProtectionIP67
