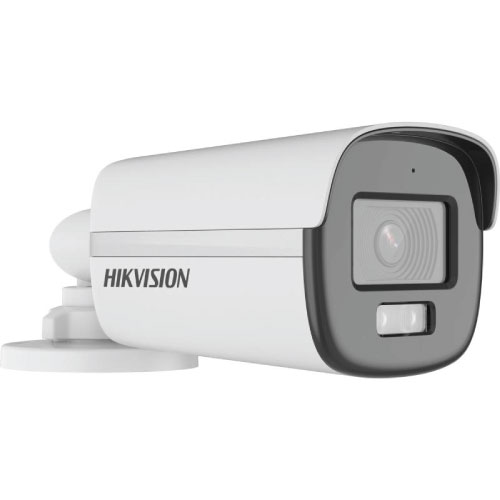

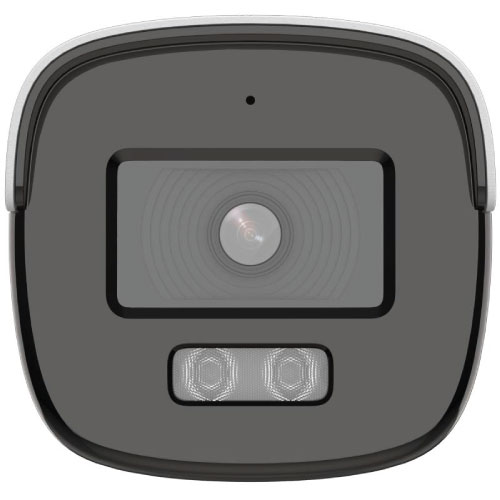

Hikvision DS-2CE12DF0T-LFS 2 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera

Product Description
Camera

Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0° to 360°,Tilt: 0° to 180°,Rotate: 0° to 360°
Signal SystemPAL/NTSC
Lens

Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV:
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°

3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°

Lens MountM12
Microphone

Pickup DistanceIn a radius of up to 5 m
Amount1
Illuminator

Supplement Light TypeSmart,IR,White Light
Supplement Light RangeIR: Up to 40 m,White Light: Up to 40 m

Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness, Sharpness, Anti-banding, AGC
Frame Rate:
TVI: 1080p @25 fps/30 fps

CVI: 1080p @25 fps/30 fps

AHD: 1080p @25 fps/30 fps

CVBS: PAL/NTSC

Day/Night ModeAuto/Color
Wide Dynamic Range (WDR)Digital WDR
Noise Reduction3D DNR/2D DNR
Image Enhancement:
DWDR,

BLC,

HLC,

Global

White BalanceAuto, Manual
Interface

Video OutputSwitchable TVI/AHD/CVI/CVBS
General

MaterialMetal
Power12 VDC ± 25%, max. 4.2 W,*You are recommended to use one power adapter to supply the power for one camera.
Dimension192.2 mm × 78 mm × 74.5 mm (7.65″ × 3.07″ × 2.93″)
Approx. 525 g (1.16 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish
Approval

ProtectionIP67
