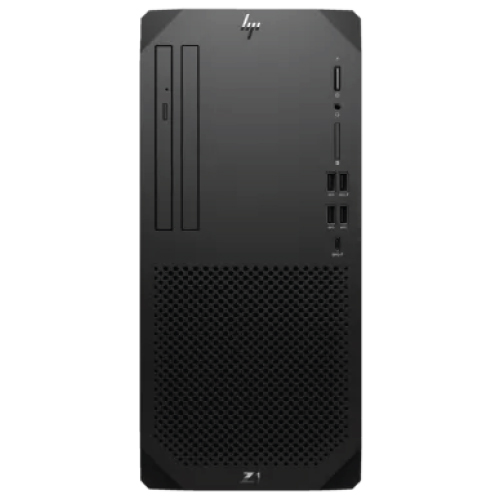

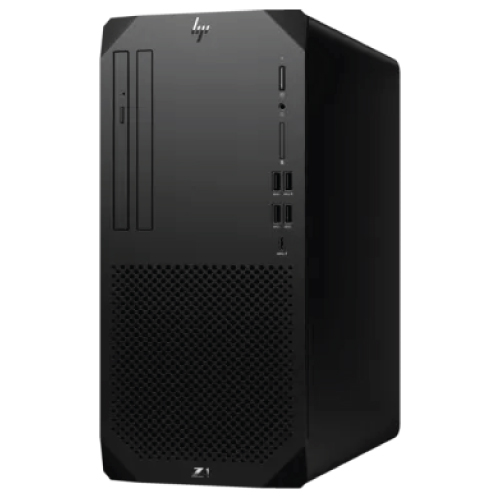

HP Z1 G9 Tower Core i9 13th Gen Workstation

Product Description

Model No
HP Z1 G9 Tower Desktop

Processor
Intel® Core™ i9-13900 (2.0 GHz P-core base frequency up to 5.2 GHz Max Turbo frequency, 36 MB L3 cache, 24-cores, 32 threads)

Chipset
Intel® Q670

RAM
32 GB DDR5-4800 SDRAM up to 128 GB DDR5-4800 SDRAM with 4 DIMMs

HDD
2TB 3.5 SATA 7200 rpm HDD, 512GB M.2 PCIe NVMe 2280 Value 3X4 SSD

Graphics
NVIDIA® GeForce RTX™ 3070 GPU 8 GB GDDR6

Operating System
FreeDOS

Networking
Integrated 10/100/1000 NIC

Intel® Wi-Fi 6 AX211 (2×2) and Bluetooth® 5.3 wireless card

Optical Drive
Slim DVD-RW

Ports and connectors
Front: 1 SuperSpeed USB Type-C® 20Gbps signaling rate (1 charging); 4 SuperSpeed USB Type-A 10Gbps signaling rate (1 charging); 1 universal audio jack;

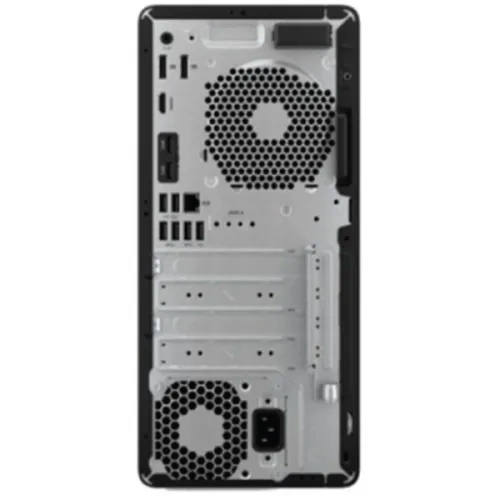

Rear: 1 audio-out; 1 HDMI 1.4; 1 power connector; 2 DisplayPort™ 1.4; 3 USB Type-A 480Mbps signaling rate; 3 SuperSpeed USB Type-A 10Gbps signalingrate; 1 RJ-45;

Audio
Realtek ALC3205 codec, universal audio jack with CTIA and OMTP headset support

Expansion slots
1 M.2 2230; 2 PCIe 3 x1; 1 PCIe 3 x16 (wired as x4); 2 M.2 2280; 1 PCIe 4 x16

(1 M.2 2230 slot for WLAN and 2 M.2 2280 slots for storage)

Drive Bays
(2) 3.5” internal storage drive bay

(2) Slim optical drive bay (optional, ODD and removable storage)

 Keyboard & Mouse
HP USB Keyboard, HP USB Optical Mouse

Security Management
HP Power On Authentication, Power-on password (via BIOS), SATA port disablement (via BIOS), Setup password (via BIOS), Support for chassis padlocks and cable lock devices, USB enable/disable (via BIOS), Serial enable/disable (via BIOS), HP Sure Click, Windows Defender, HP Sure Sense, HP Client Security Manager Gen7, HP Sure Start Gen7, HP Sure Run Gen4, HP Sure Recover Gen4, HP Tamper Lock, TPM 2.0 Embedded Security Chip (Common Criteria EAL4+ Certified) (FIPS 140-2 Level 2 Certified)

Power
550 W 92% efficient, wide-ranging, active PFC

Warranty
3 Years Standard Warranty
