Categories: Security & Surveillance, Walkthrough Metal Detector

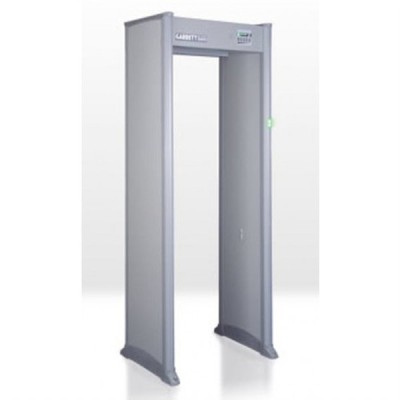

Walkthrough MZ6100
Call for Price
Competitively priced, Garrett’s MZ 6100 walkthrough metal detector provides enhanced performance and superior versatility. More than 15 special program selections have been engineered to meet the varying requirements of schools, stadiums, government buildings, airports, special events, prisons, night clubs, entertainment venues, loss prevention, and more.
The MZ 6100’s bright LED indicators are highly visible, even in direct sunlight. The unit’s 20 detection zones provide the precise location for one or more metallic objects simultaneously, and advanced circuitry allows multiple detectors to be installed as close as 2 inches from each other.
Product Description
Technical Specifications
| Operating Temperatures | -4° F (-20° C) to +140° F (60° C); Humidity to 95% non-condensing. |
| Power | Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed. |
| Regulatory Information | Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP and IEEE. Additional certifications pending. |
| Weatherproofing | Meets IP 55, IP 65 (optional), IEC 529 Standard for moisture, foreign matter protection |
| Construction | Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum. |
| Control Outputs | Optional module connector via RS 485 cable provides NO/NC relay contact |
| Remote Control (optional) | Desktop Remote Control with Zone Indication; personal computer with wired or wireless CMA; or IR remote CMA. |
| Networking (optional) | Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless CMA. |
| Alarm Indicators | Red Alarm LEDs on control panel and at eye-level plus 20 independent zone indicators |
| Garrett Walk-Through Detector Safety | Garrett walk-through metal detectors meet U.S. and international regulatory requirements for electromagnetic safety. Extensive research has found no information that would indicate Garrett products have adverse effects on pregnancy, medical devices (such as pacemakers) or magnetic recording media. However, directives by physicians and medical device manufacturers regarding metal detectors should be followed. |
| Standard Programs | More than 15 application programs included |
| Sensitivity | 200 distinct sensitivity levels |
| Auto Frequency Scan | Automatic selection of optimal frequency |
| Highly Intensity LED Indicators | Crisp, eye-level green and red status lights and zone indicators are highly visible, even in direct sunlight |
| Tamper-Proof Settings | Three levels of security clearance include access codes and lockable panel |
| Self Diagnostic Program | Complete and automatic |
| Zone Sensitivity Boost | 20 Independently adjustable zone boosts |
| Battery Packs (optional) | 1-hour or 10-hour operation options available |
| Warranty | 24 months, Limited Parts/Labor |
