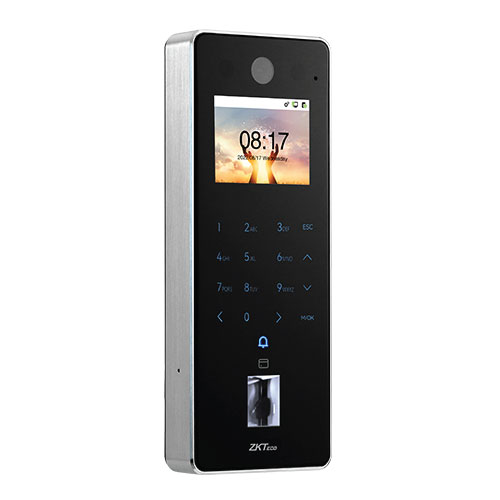

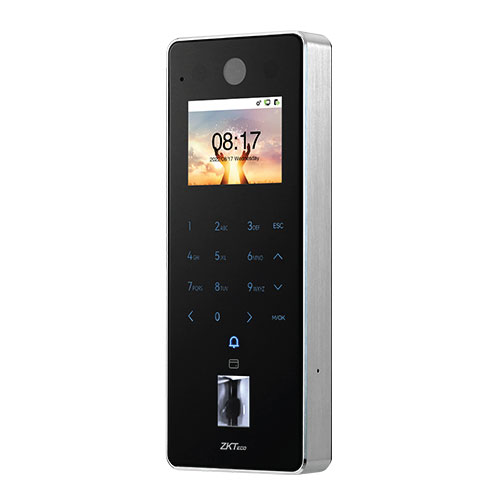

ZKTeco F35 Fingerprint Time Attendance and Access Control Terminal

Product Description
Model: F35
Display: 2.4″@ TFT Color LCD Screen (720*1280)
Camera: Camera @ 2MP
Field of View:
Diagonal: 145°
Horizontal: 118°
Vertical: 62°

Operation System: Linux
Hardware:
CPU: 1.2GHz Dual Core
RAM: 256MB; ROM: 512MB
Speaker: 8ohms±20% @1.0W
Microphone: *1 (Sensitivity: -29 to -35 dB / Omni-directional / Signal-to-Noise Ratio: 58 dB / Impedance: 2.2 kΩ
Fingerprint Sensor: In-Glass Fingerprint (Z-ID)

Authentication Method: Fingerprint / Card / Password (Physical Touch Keypad )
User Capacity: 10,000 (1:N)
Card Capacity: 10,000 (1:N)
Fingerprint Template Capacity: 10,000 (1:N)
Transaction Capacity: 500,000
Max. User Password Length: 6 to 8 Digits
Biometric Verification Speed: less than 0.3 sec (Fingerprint)
False Acceptance Rate (FAR) %: FAR ≦ 0.0001% (ZKFingerprint V10.0)
False Rejection Rate (FRR) %: FRR ≦ 0.01% (ZKFingerprint V10.0)
Biometric Algorithm: ZKFingerprint V10.0
Support Card Type:
ID Card@125 kHz (Standard)
Optional Multi-Tech Module:
Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency)
Module 2: ID & IC & DESFire EV1 / EV 2 & FeliCa & Legic & HID Prox (125 kHz & 13.56 MHz Dual Frequency)
Module 3: ID & IC & DESFire EV1 / EV2 & FeliCa & Legic & HID Prox & HID iClass (125 kHz & 13.56 MHz Dual Frequency)

Communication:
TCP/IP*1
Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz
Wiegand (Input & Output)*1
RS485: ZKTeco RS485 *1
Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1

Standard Functions:
Webserver, ADMS, DST, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti Passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods Video Door Phone, ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push, Protocol Switch, HTTPS / SSH Backend Access, T9 Keyboard (Input)

Optional Functions: ZSmart, SIP Client (Ver2.0), Wi-Fi, IC Card, Multi-Tech Module: Module 1 / Module2 / Module 3,Wireless Doorbell
Access Control Interface: RS485 (DM10 Controller 1 Door Expansion (Coming soon) / RS485 Card Reader / Fingerprint Reader)
Power Supply: DC 12V 3A
Operating Temperature: -5℃ to 55℃ (23 ℉ to 131 ℉ )
Operating Humidity: 10% to 90% RH (Non-condensing)
Dimensions: 195 mm*75 mm*25.35 mm (L*W*H)
Gross Weight: 1.13 Kg
Net Weight: 0.52 Kg
Supported Software:
Software: ZKBio CVAccess / ZKBioTime
Mobile App: ZSmart

Installation: Wall-mount (Compatible with Asian Gang-box / Single Gang-Box / European Gang-Box)
Housing Material: Aluminium Alloy
Ingress Protection Rating:
IP65 (waterproof and dustproof )
IK04 (Vandal Resistant)

Certifications: ISO14001, ISO9001, CE, FCC, RoHS
