Categories: Interactive Flat Panel, ZKTeco

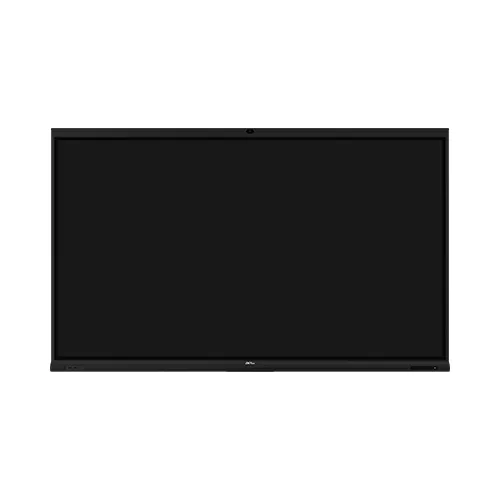

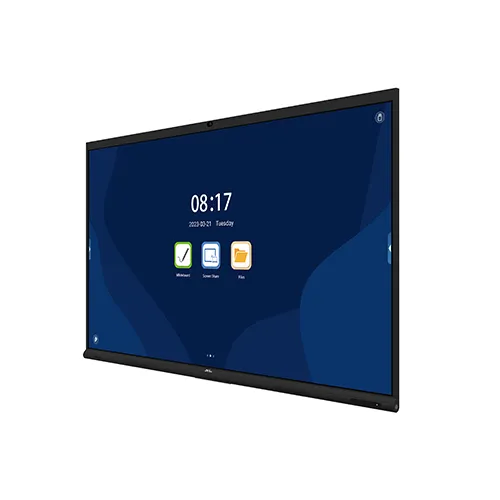

ZKTeco ZK-IWB65BM 65 Inch 4K UHD Interactive Flat Panel Display
Call for Price
- Model: ZK-IWB65BM
- UHD 4K Display with Resolution of 3840×2160
- RAM: 8GB, Built-in Storage: 64GB
- Camera: 8 MP, Diagonal 103°, Face & Voice Tracking,
- Advanced Infrared Touch Technology
Specification
| Display Details | ||
| Display Format Native Resolution | 4K UHD (3840 × 2160) | |
| Aspect Ratio | 16:9 | |
| Picture Response Time | 6ms (typ.) | |
| Refresh Frequency | 60Hz | |
| Display Colors | 1.07B | |
| Brightness (typical) | 400cd/m²(typ.) | |
| Contrast Ratio | 1200:1 (typ.) | |
| Viewing Angle | 178°(H)/178°(V) | |
| Others | Bonding Technology: The gap between tempered glass and screen is close to 0 | |
| Touch System | ||
| Touch Point | Android: 20 Multi-touch points; Windows: 40 Multi-touch points | |
| Touch Response Time | <10ms | |
| Others | Input: Stylus/ Finger/ Other solid(soft tip) object Accuracy: ±1mm (middle 0ver 90% area) Writing Height: 2.0mm Resolution: 32768 × 32768 Response Time: <10ms Minimum Touch Object: Single touch: ≥1.6 mm; Multiple touch: ≥2.0 mm Recognition Level Of Thick And Thin Pens: 4 Grades: 3mm/ 8mm/ 12mm fine eraser/ 25mm eraser |
|
| Operating System | ||
| System Version | Andriod 11.0/ Windows 11 (Optional) | |
| CPU | Architecture: Quad core ARM Cortex A73+ Quad core Cortex A53 2.0GHz< Operating frequency< 2.2GHz Chipset: A311D2 |
|
| GPU | MaliG52 MP8 | |
| RAM | 8GB | |
| ROM | 64GB (Andriod 11.0) / 256GB (Windows 11.0) | |
| Connectivity | ||
| HDMI | HDMI OUT x1 HDMI IN (ARC) 1 2. 0 x1 HDMI IN (CEC) 2 2.0 x1 |
|
| VGA | 1x VGA | |
| PC Audio In | 1x Audio IN | |
| Audio out | 1x Audio OUT | |
| LAN | LAN IN/OUT x1 | |
| USB | USB 3.0 x4, USB 2.0 x1, USB 3.0 x2, Type C x2 | |
| Touch Output | Touch-USB x3 | |
| RS232 | 1x RS232 | |
| Others | IEEE 802.11 ax / b / g / n / ac Operating Frequency: 2.4GHz / 5GHz BT 2.1+ EDR / 4.2 / 5.2 NFC |
|
| Physical Specification | ||
| Dimensions | 1482.1x 105.6x 936.7 mm (L*W*H) | |
| Weight | 40.5kg42±1.5kg | |
| Power | Power Consumption: 300W Operating Power: 100 V ~ 240 V/AC, 50/60 Hz Standby Consumption: ≤0.5W |
|
| Others | Camera Pixel: 8 Mega pixels FOV: Diagonal 103° Focal Distance: 3m Face Tracking: Support Voice Tracking: Support Microphone Array Quantity: 8 microphones array Pickup Range: 8m (Angle:45°-135°) AEC & AGC & Speech Enhancement: Support Environment Operating Temperature: 0°C to 40°C Storage Temperature: 10°C to 60°C Operating Humidity: 20% to 80% RH (Non-condensing) Storage Humidity: 10% to 60% RH (Non-condensing) Color: Black Case Material: Aluminium / Sheet Metal Enclosure |
|
| Warranty | ||
| Warranty | 1-year (Transportation or Conveyance bill will be added for outside Dhaka customers for each service including installation or any warranty issue) | |
