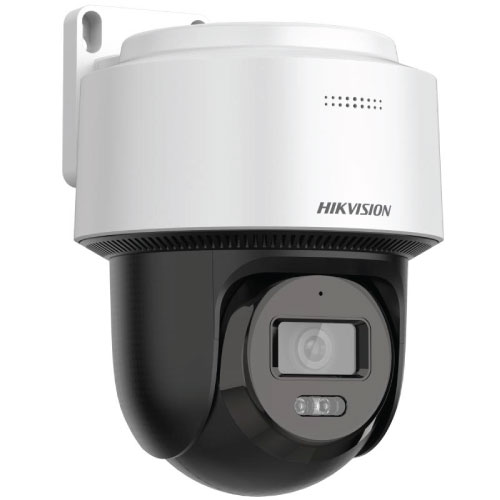

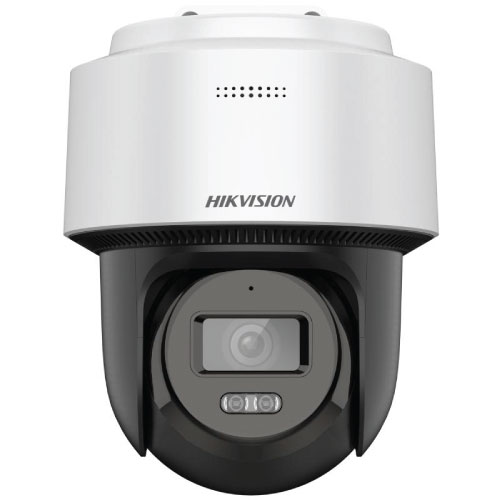

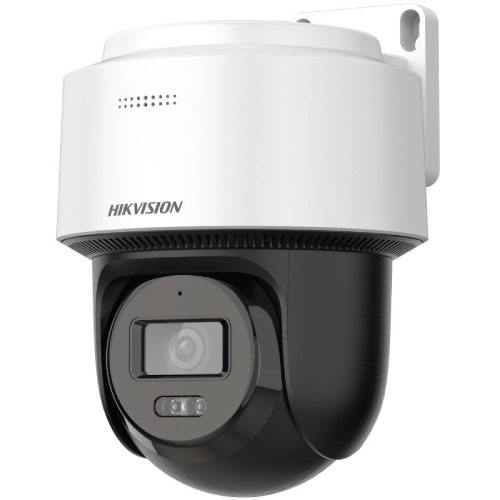

Hikvision DS-2DE2C200MWG-E 2 MP Smart Hybrid Light Mini PT Network Camera

Product Description
Camera

Image Sensor1/2.9″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON),B/W: 0.005 Lux @ (F2.0, AGC ON),0 Lux with light
Lens

Focal Length2.8 mm, 4 mm
FOV:
2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123°

4 mm, horizontal FOV 81°, vertical FOV 44°, diagonal FOV 97°

ApertureF2.0
Illuminator

Supplement Light TypeIR,White Light
Supplement Light RangeWhite light distance: up to 30 m,IR distance: up to 30 m
IR Wavelength850 nm
PTZ

Movement Range (Pan)0° to 345°
Movement Range (Tilt)0° to 80°
Pan SpeedUp to 25°/s
Tilt SpeedUp to 20°/s
Video

Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video CompressionH.265, H.264, MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline profile,Main profile,High profile
H.265 TypeMain profile
Audio

Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM//AAC-LC
Audio Bit Rate16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
Audio Sampling Rate8 kHz,16 kHz
Environment Noise FilteringYes
Network

ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK

Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, 3D DNR
Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone1 built-in microphone
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker1 built-in speaker
Event

Basic EventMotion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception
LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite
General

Power
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W

Dimension
Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31\” × 5.19\”)

With package dimension: 224 mm × 164 mm × 230 mm (8.82 × 6.46\” × 9.06\”)”

Camera weight: 600 g (1.32 lb.)

With package weight: 900 g (2.0 lb.)

MaterialPlastic
Operating Condition-30 °C to 40 °C (-22 °F to 104 °F). Humidity 90% or less (non-condensing)
General FunctionMirror, password protection, watermark
Approval

EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
EnvironmentCE-RoHS (2011/65/EU),Reach (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529-2013)
