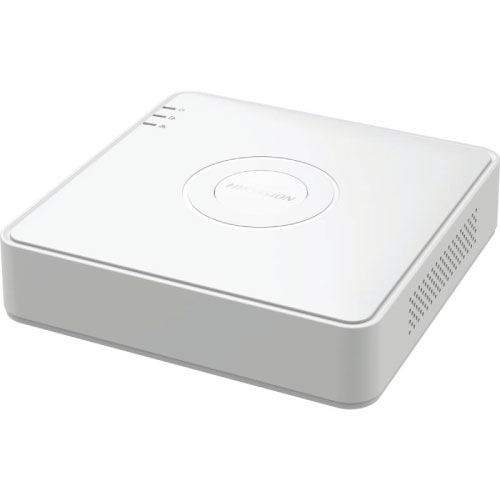

Hikvision DS-7104HGHI-M1/T 4-ch Two Way Audio 1080p Lite Mini 1U H.265 DVR

Product Description
Motion Detection 2.0

Human/Vehicle Analysis
Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video and Audio

IP Video Input
1-ch (up to 5-ch)

Up to 2MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

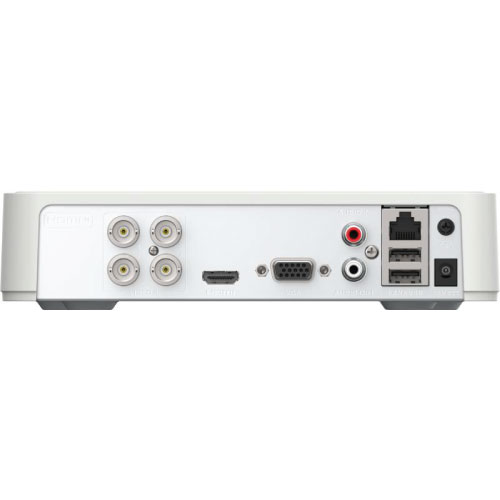

Analog Video Input
4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputSupport
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output ModeHDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way AudioReuse the first audio input
Synchronous playback4-ch
Recording

Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate
Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate32 Kbps to 4 Mbps
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
Network

Total Bandwidth64 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
Remote Connection32
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface

SATA1 SATA interface
CapacityUp to 4 TB capacity for each disk
USB InterfaceRear panel: 2 × USB 2.0
Alarm In/OutN/A
General

Power Supply12 VDC, 1.5 A
Consumption≤ 10 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
≤ 0.8 kg (without HDD, 1.8 lb.)
