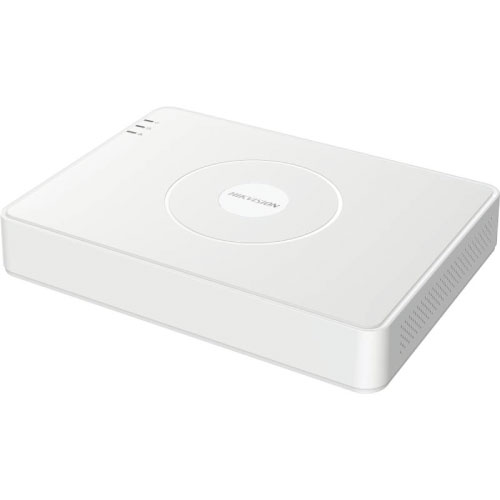

Hikvision DS-7116HGHI-M1 16-ch 720p Mini 1U H.265 DVR

Product Description
Motion Detection 2.0

Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video and Audio

IP Video Input
2-ch (up to 18-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
16-ch

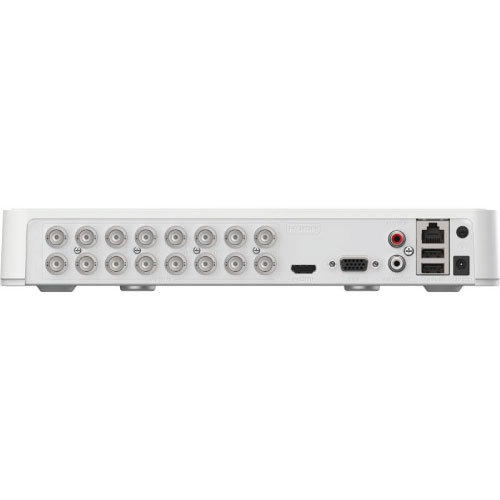

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputPAL/NTSC
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback16-ch
Recording

Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For standard definition stream access: WD1/4CIF/VGA/CIF

Frame Rate
Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

For 1080p and 720p stream access CIF/QVGA@15 fps

For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate32 Kbps to 4 Mbps
Dual-streamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
Network

Total Bandwidth96 Mbps
Remote Connection128
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface

SATA1, SATA interface
CapacityUp to 6 TB capacity for each disk
USB Interface2 × USB 2.0
General

Power Supply12 VDC, 2 A
Consumption≤ 7 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
≤ 1.8 kg (without HDD, 4.0 lb.)
