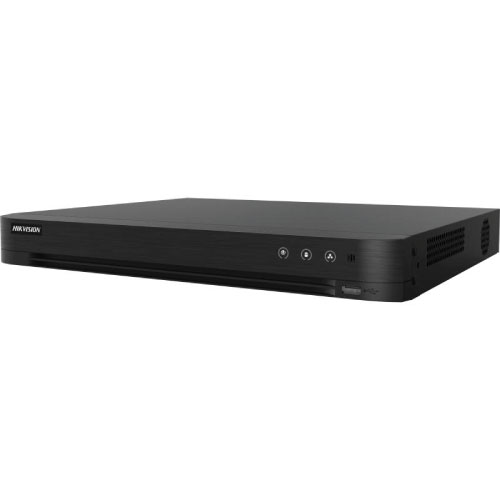

Hikvision DS-7232HGHI-M2 32-ch 720p 1U H.265 DVR

Product Description
Motion Detection 2.0

Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video and Audio

IP Video Input
2-ch (up to 18-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
32-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputPAL/NTSC
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω)
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)

32-ch via coaxial cable

Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback16-ch
Recording

Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps

For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps

For standard definition stream access: WD1/4CIF/VGA/CIF@25fps

Sub-stream: CIF/QVGA@15fps

Video Bitrate32 Kbps to 4 Mbps
Dual-streamNonsupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
Network

Remote Connection128
Total Bandwidth128 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, EHome
Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface

Serial InterfaceRS-485 (half-duplex)
SATA2 SATA interface
CapacityUp to 10 TB capacity for each disk
USB Interface
Front panel: 1 × USB 2.0

Rear panel: 1 × USB 3.0

General

Power Supply12 VDC, 3.33 A
Consumption≤ 18 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
≤ 2.2 kg (without HDD, 4.9 lb.)
