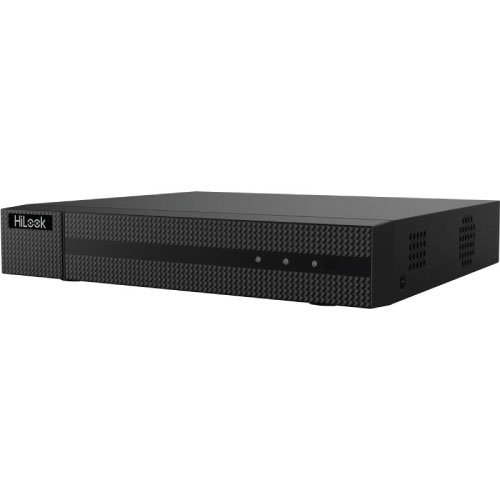

Hikvision HiLook NVR-108MH-D 8-ch Mini 1U NVR

Product Description
Video and Audio

IP Video Input
8-ch

Up to 6 MP resolution

Incoming Bandwidth60 Mbps
Outgoing Bandwidth60 Mbps
HDMI Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA simultaneous output
Decoding

Decoding FormatH.265+/H.265/ H.264+/H.264
Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback4-ch
Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
Stream TypeVideo, Video & Audio
Network

Remote Connection16
Network ProtocolTCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface

SATA1 SATA interface
CapacityUp to 6 TB capacity for each disk
Alarm In/OutN/A
USB InterfaceRear panel: 2 × USB 2.0
General

Power Supply12 VDC, 1.5 A
Consumption≤ 10 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
≤ 1 kg (without HDD, 2.2 lb.)
Certification

CEEN50130-4, EN 61000-3-2,EN 61000-3-3
